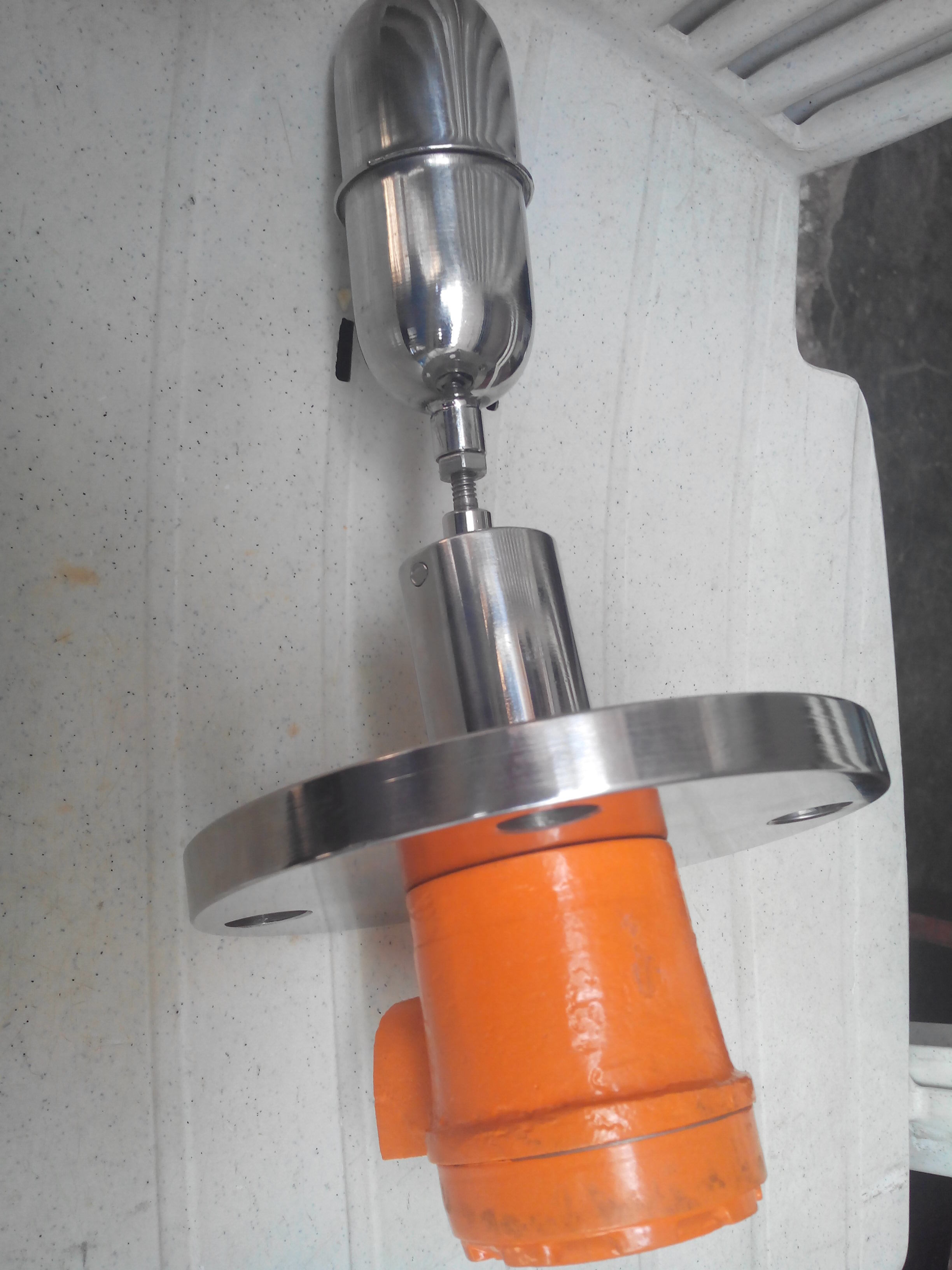

Side Mounted Magnetic Level Switch

Side Mounted Magnetic Level Switch:

Magnetic Level Switches is specially suitable for high and low level signalization or automatic level control (by starting & stopping pumps or opening & closing of valves) in vessels. Horizontal mounting type directly on vessel or on External Chamber.

Description:-

Compact & rugged construction consisting of a free moving pivoted float assembly and a switch enclosure in non - magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one carried by the float arm and other by the contact carriers housed in the switch enclosure.

Wetted Parts:

• MOC                : S.S.316/S.S.304 / P.P
• Switch              : REED SWITCH / Micro switch having NO+NC+C 230 VAC
• Connection       : Flanges , Screwed , Square Flange etc..

•       The side mounted float level Switch is manufactured specifically for horizontal mounting in a tank or vessel.
•       They work well as high or low level control.
•       The Micro-Switch type OR Reed Switch is usable even at ambient temp. of 150°C max.
•        High Temperature operated Level switches are customized depending upon clients requirements:
•        Mounting flanges are custom-specifiable.
•        A rich variety of floats can suit different specific gravity (S.G.) of liquid. (Custom-made)



• Fuel oil tank control,
• Boiler feed water drum control,
• cooling tower lubrication/cooling/filtration systems,
• paint shops,
• water/waste water treatment plants,
• food/drug/pharmaceuticals/
• petrochemical plants/separation plants,
• sealing liquid level control for generators etc.
